Description

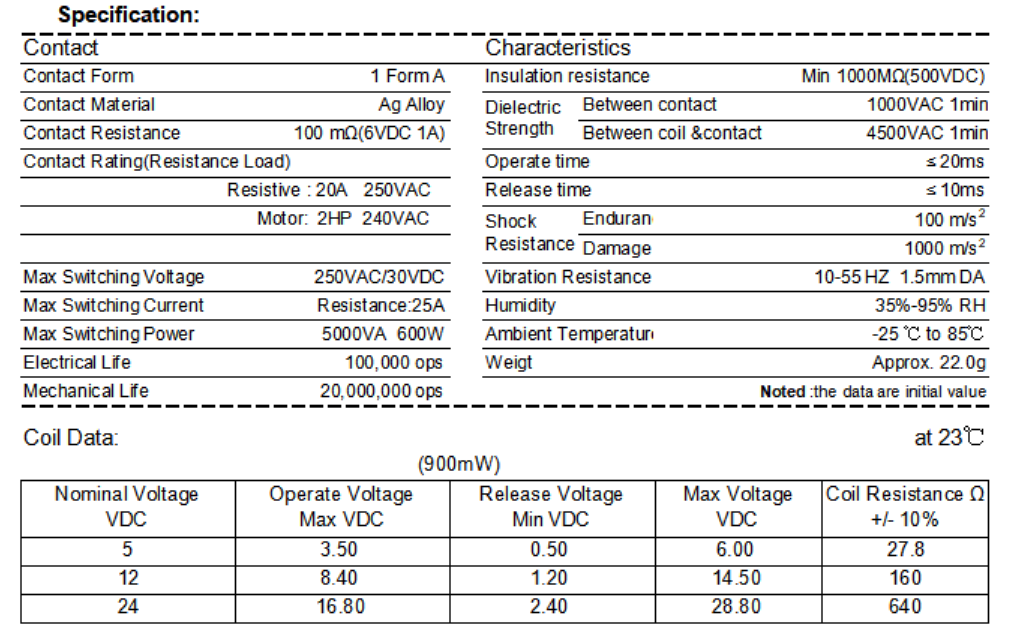

Specification: | |||||||||
Contact | Characteristics | ||||||||
Contact Form | 1 Form A | Insulation resistance | Min 1000MΩ(500VDC) | ||||||
Contact Material | Ag Alloy | Dielectric Strength | Between contact 1000VAC 1min | ||||||
Contact Resistance | 100 mΩ(6VDC 1A) | Between coil &contact 4500VAC 1min | |||||||
Contact Rating(Resistance Load) | Operate time | ≤ 20ms | |||||||
Resistive : 20A 250VAC | Release time | ≤ 10ms | |||||||
Motor: 2HP 240VAC | Shock Resistance | Endurance | 100 m/s2 | ||||||
Damage | 1000 m/s2 | ||||||||
Max Switching Voltage | 250VAC/30VDC | Vibration Resistance | 10-55 HZ 1.5mm DA | ||||||
Max Switching Current | Resistance:25A | Humidity | 35%-95% RH | ||||||
Max Switching Power | 5000VA 600W | Ambient Temperature | -25 ℃ to 85℃ | ||||||
Electrical Life | 100,000 ops | Weigt | Approx. 22.0g | ||||||
Mechanical Life | 20,000,000 ops | Noted :the data are initial value | |||||||
Coil Data: | at 23℃ | ||||||||
(900mW) | |||||||||
Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | |||||
5 | 3.50 | 0.50 | 6.00 | 27.8 | |||||
12 | 8.40 | 1.20 | 14.50 | 160 | |||||
24 | 16.80 | 2.40 | 28.80 | 640 |
