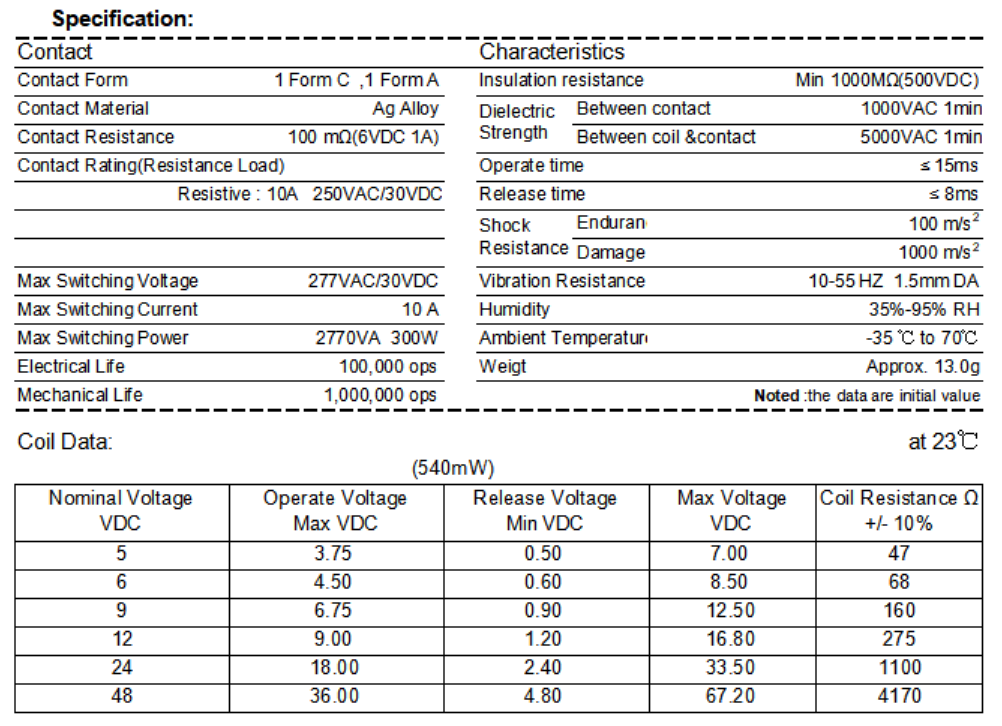

| Specification: | |||||||||
| Contact | Characteristics | ||||||||
| Contact Form | 1 Form C ,1 Form A | Insulation resistance | Min 1000MΩ(500VDC) | ||||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 1000VAC 1min | ||||||
| Contact Resistance | 100 mΩ(6VDC 1A) | Between coil &contact 5000VAC 1min | |||||||
| Contact Rating(Resistance Load) | Operate time | ≤ 15ms | |||||||
| Resistive : 10A 250VAC/30VDC | Release time | ≤ 8ms | |||||||
| Shock Resistance | Endurance | 100 m/s2 | |||||||
| Damage | 1000 m/s2 | ||||||||
| Max Switching Voltage | 277VAC/30VDC | Vibration Resistance | 10-55 HZ 1.5mm DA | ||||||
| Max Switching Current | 10 A | Humidity | 35%-95% RH | ||||||
| Max Switching Power | 2770VA 300W | Ambient Temperature | -35 ℃ to 70℃ | ||||||
| Electrical Life | 100,000 ops | Weigt | Approx. 13.0g | ||||||
| Mechanical Life | 1,000,000 ops | Noted :the data are initial value | |||||||
| Coil Data: | at 23℃ | ||||||||
| (540mW) | |||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | |||||
| 5 | 3.75 | 0.50 | 7.00 | 47 | |||||
| 6 | 4.50 | 0.60 | 8.50 | 68 | |||||
| 9 | 6.75 | 0.90 | 12.50 | 160 | |||||
| 12 | 9.00 | 1.20 | 16.80 | 275 | |||||
| 24 | 18.00 | 2.40 | 33.50 | 1100 | |||||
| 48 | 36.00 | 4.80 | 67.20 | 4170 | |||||
