HRG14H

  • Size :29.0×12.6×20.6(mm)
  • 16A , 1 Form C , 8 pins
    Inquiry Send Email PDF

    Description

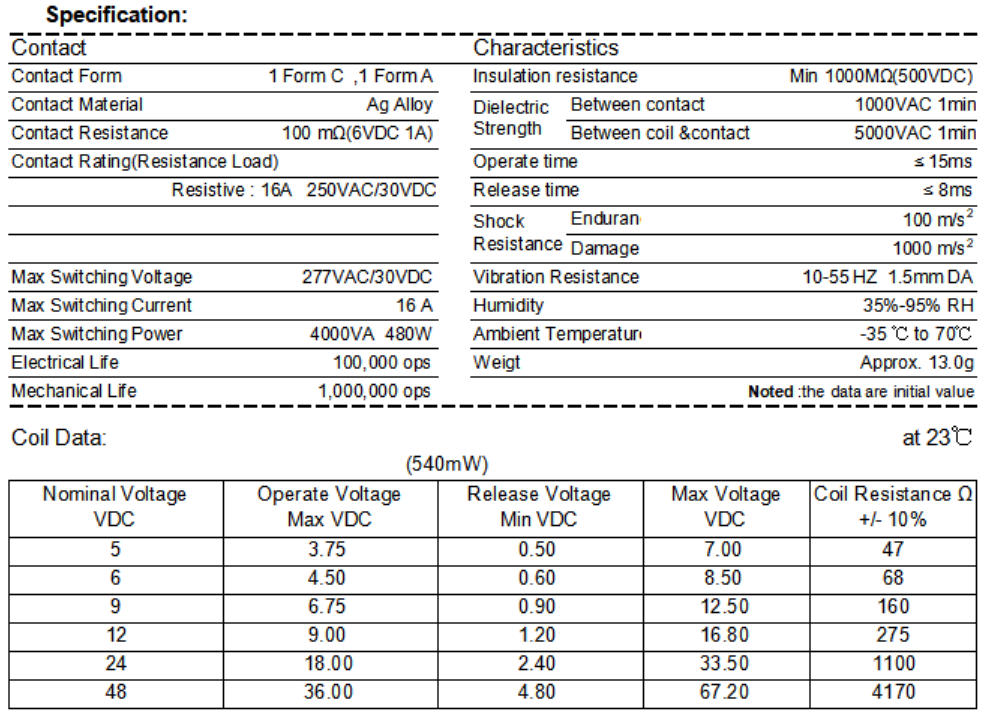

    Specification:
    Contact Characteristics
    Contact Form 1 Form C ,1 Form A Insulation resistance Min 1000MΩ(500VDC)
    Contact Material Ag Alloy Dielectric Strength Between contact 1000VAC 1min
    Contact Resistance 100 mΩ(6VDC 1A) Between coil &contact 5000VAC 1min
    Contact Rating(Resistance Load) Operate time ≤ 15ms
    Resistive : 16A 250VAC/30VDC Release time ≤ 8ms
    Shock Resistance Endurance 100 m/s2
    Damage 1000 m/s2
    Max Switching Voltage 277VAC/30VDC Vibration Resistance 10-55 HZ 1.5mm DA
    Max Switching Current 16 A Humidity 35%-95% RH
    Max Switching Power 4000VA 480W Ambient Temperature -35 ℃ to 70℃
    Electrical Life 100,000 ops Weigt Approx. 13.0g
    Mechanical Life 1,000,000 ops Noted :the data are initial value
    Coil Data: at 23℃
                    (540mW)
    Nominal Voltage VDC Operate Voltage Max VDC Release Voltage Min VDC Max Voltage VDC Coil Resistance Ω +/- 10%
    5 3.75 0.50 7.00 47
    6 4.50 0.60 8.50 68
    9 6.75 0.90 12.50 160
    12 9.00 1.20 16.80 275
    24 18.00 2.40 33.50 1100
    48 36.00 4.80 67.20 4170
