HRT23

  • Size :12.5×7.5×10.0(mm)
  • telecom , signal relay , small size relay , 1Amp relay
    Inquiry Send Email PDF

    Description

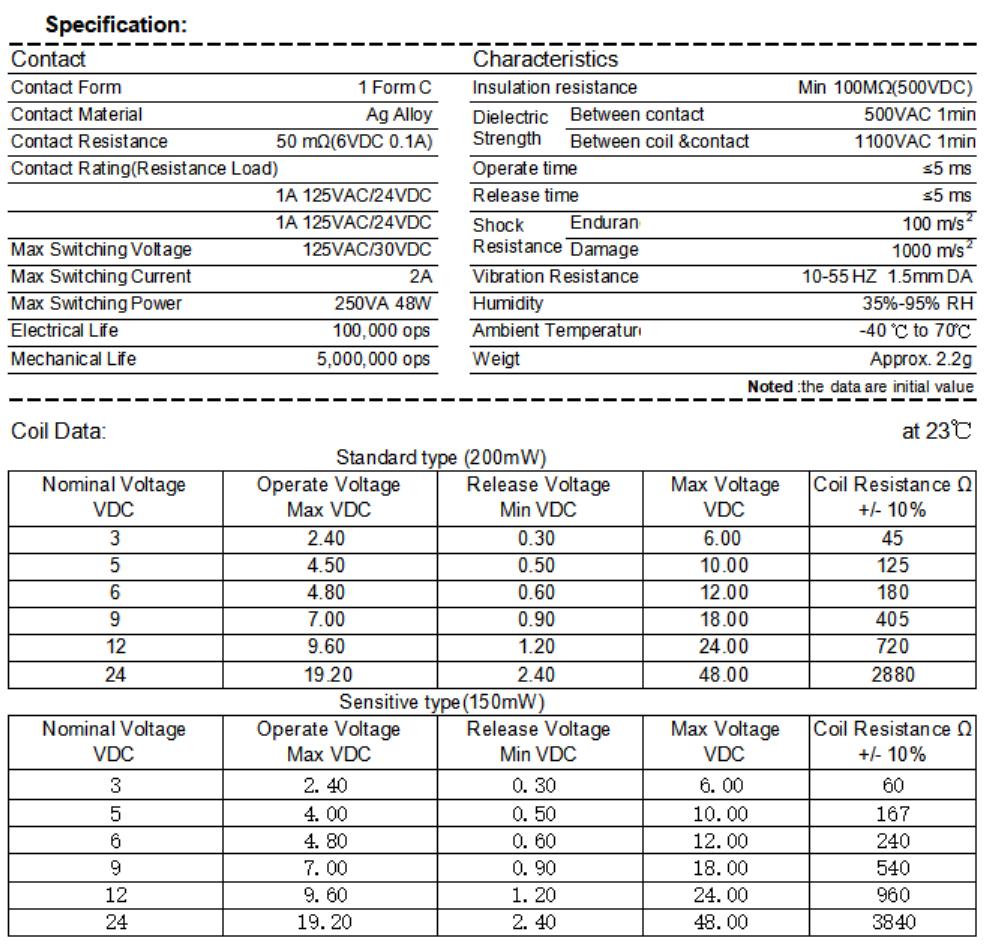

    Specification:
    Contact Characteristics
    Contact Form 1 Form C Insulation resistance Min 100MΩ(500VDC)
    Contact Material Ag Alloy Dielectric Strength Between contact 500VAC 1min
    Contact Resistance 50 mΩ(6VDC 0.1A) Between coil &contact 1100VAC 1min
    Contact Rating(Resistance Load) Operate time ≤5 ms
    1A 125VAC/24VDC Release time ≤5 ms
    1A 125VAC/24VDC Shock Resistance Endurance 100 m/s2
    Max Switching Voltage 125VAC/30VDC Damage 1000 m/s2
    Max Switching Current 2A Vibration Resistance 10-55 HZ 1.5mm DA
    Max Switching Power 250VA 48W Humidity 35%-95% RH
    Electrical Life 100,000 ops Ambient Temperature -40 ℃ to 70℃
    Mechanical Life 5,000,000 ops Weigt Approx. 2.2g
    Noted :the data are initial value
    Coil Data: at 23℃
    Standard type (200mW)
    Nominal Voltage VDC Operate Voltage Max VDC Release Voltage Min VDC Max Voltage VDC Coil Resistance Ω +/- 10%
    3 2.40 0.30 6.00 45
    5 4.50 0.50 10.00 125
    6 4.80 0.60 12.00 180
    9 7.00 0.90 18.00 405
    12 9.60 1.20 24.00 720
    24 19.20 2.40 48.00 2880
    Sensitive type(150mW)
    Nominal Voltage VDC Operate Voltage Max VDC Release Voltage Min VDC Max Voltage VDC Coil Resistance Ω +/- 10%
    3 2.40 0.30 6.00 60
    5 4.00 0.50 10.00 167
    6 4.80 0.60 12.00 240
    9 7.00 0.90 18.00 540
    12 9.60 1.20 24.00 960
    24 19.20 2.40 48.00 3840
