Description

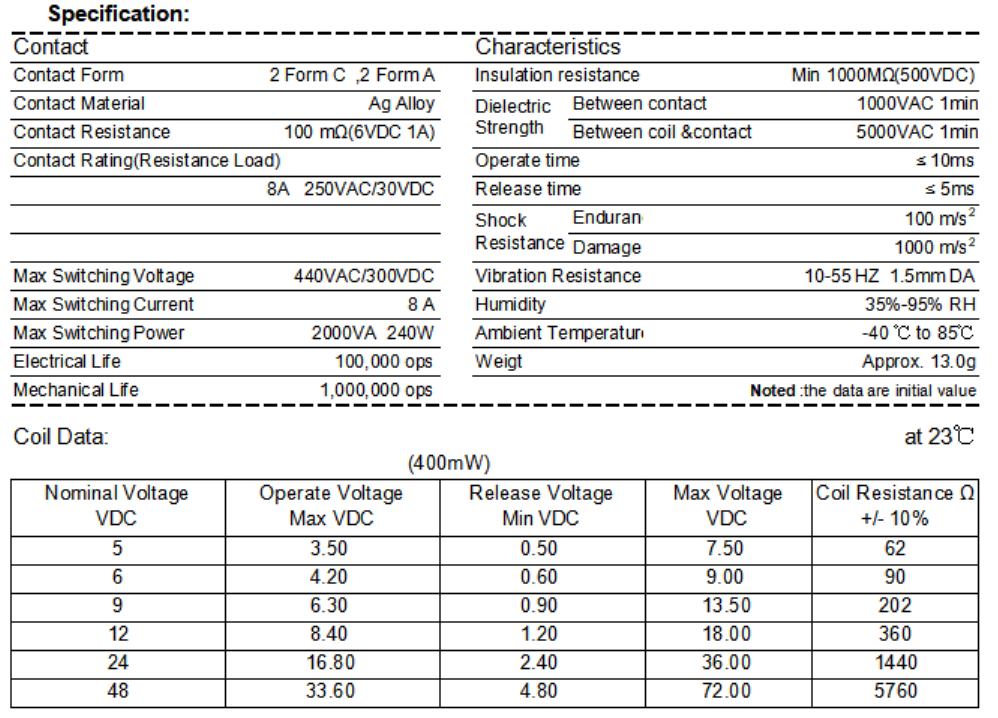

| Specification: | ||||||||
| Contact | Characteristics | |||||||
| Contact Form | 2 Form C ,2 Form A | Insulation resistance | Min 1000MΩ(500VDC) | |||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 1000VAC 1min | |||||
| Contact Resistance | 100 mΩ(6VDC 1A) | Between coil &contact 5000VAC 1min | ||||||
| Contact Rating(Resistance Load) | Operate time | ≤ 10ms | ||||||
| Resistive : 8A 250VAC/30VDC | Release time | ≤ 5ms | ||||||
| Shock Resistance | Endurance | 100 m/s2 | ||||||
| Damage | 1000 m/s2 | |||||||
| Max Switching Voltage | 440VAC/300VDC | Vibration Resistance | 10-55 HZ 1.5mm DA | |||||
| Max Switching Current | 8 A | Humidity | 35%-95% RH | |||||
| Max Switching Power | 2000VA 240W | Ambient Temperature | -40 ℃ to 85℃ | |||||
| Electrical Life | 100,000 ops | Weigt | Approx. 13.0g | |||||
| Mechanical Life | 1,000,000 ops | Noted :the data are initial value | ||||||
| Coil Data: | at 23℃ | |||||||
| (400mW) | ||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | ||||
| 5 | 3.50 | 0.50 | 7.50 | 62 | ||||
| 6 | 4.20 | 0.60 | 9.00 | 90 | ||||
| 9 | 6.30 | 0.90 | 13.50 | 202 | ||||
| 12 | 8.40 | 1.20 | 18.00 | 360 | ||||
| 24 | 16.80 | 2.40 | 36.00 | 1440 | ||||
| 48 | 33.60 | 4.80 | 72.00 | 5760 | ||||
