Description

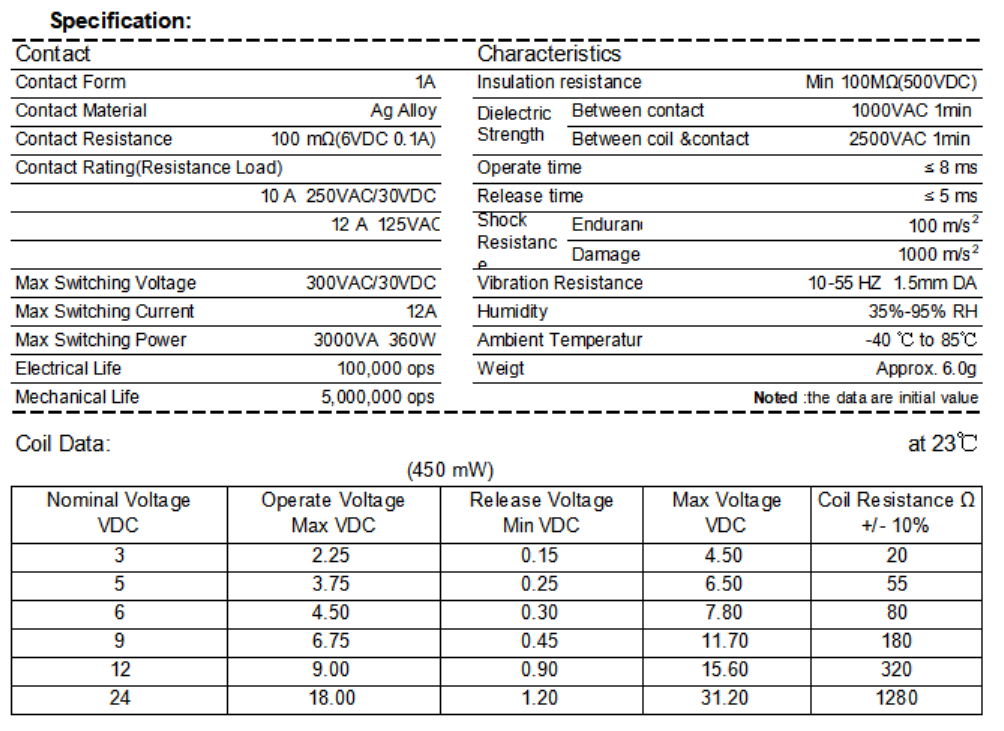

| Specification: | ||||||||
| Contact | Characteristics | |||||||
| Contact Form | 1A | Insulation resistance | Min 100MΩ(500VDC) | |||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 1000VAC 1min | |||||
| Contact Resistance | 100 mΩ(6VDC 0.1A) | Between coil &contact 2500VAC 1min | ||||||
| Contact Rating(Resistance Load) | Operate time | ≤ 8 ms | ||||||
| 10 A 250VAC/30VDC | Release time | ≤ 5 ms | ||||||
| 12 A 125VAC | Shock Resistance | Endurance | 100 m/s2 | |||||
| Damage | 1000 m/s2 | |||||||
| Max Switching Voltage | 300VAC/30VDC | Vibration Resistance | 10-55 HZ 1.5mm DA | |||||
| Max Switching Current | 12A | Humidity | 35%-95% RH | |||||
| Max Switching Power | 3000VA 360W | Ambient Temperature | -40 ℃ to 85℃ | |||||
| Electrical Life | 100,000 ops | Weigt | Approx. 6.0g | |||||
| Mechanical Life | 5,000,000 ops | Noted :the data are initial value | ||||||
| Coil Data: | at 23℃ | |||||||
| (450 mW) | ||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC |
Release Voltage Min VDC |
Max Voltage VDC | Coil Resistance Ω +/- 10% | ||||
| 3 | 2.25 | 0.15 | 4.50 | 20 | ||||
| 5 | 3.75 | 0.25 | 6.50 | 55 | ||||
| 6 | 4.50 | 0.30 | 7.80 | 80 | ||||
| 9 | 6.75 | 0.45 | 11.70 | 180 | ||||
| 12 | 9.00 | 0.90 | 15.60 | 320 | ||||
| 24 | 18.00 | 1.20 | 31.20 | 1280 | ||||
