HRA11

Size ：74.8×32.3× 39.0(mm)

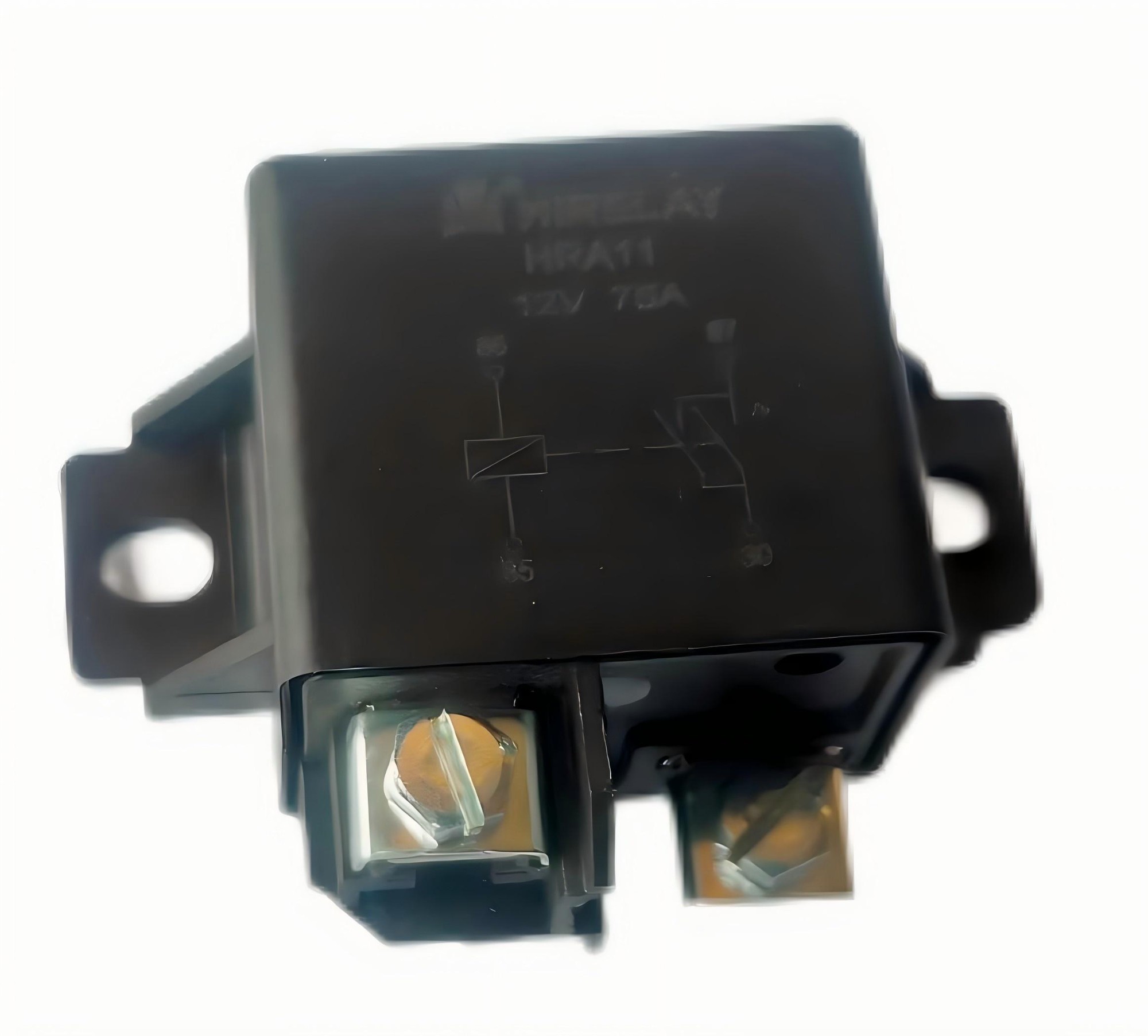

75A Engine start relay

Auto start/stop control

Odering Information
							① Part No.
HRA11	DC12V	A	D	X			② Coil Voltage :
							DC 12, 24V
①	②	③	④	④			③ Contact form:
							A : 1 Form A
④	Parallel coil components						④Special requirment
	R: With Resistor
	D1:The anode of the diode is connected to terminal #86
	D2:The cathode of the diode is connected to terminal #86
	DD:The coil is connected in parallel with a bidirectional diode
	Nil :Standard
Specification:
Contact					Characteristics
Contact Form 1 Form A					Insulation resistance		100MΩ(500VDC)
Contact Material		Ag Alloy			Dielectric Strength
Contact Resistance		100 mΩ				Between coil &contact 1000VAC
Contact Rating					Operate time		≤ 30ms
75A 28VDC					Release time		≤ 15ms
					Shock Resistance	Endurance	100 m/s2
						Damage	1000 m/s2
Min Contact Load		1A 6VDC			Vibration Resistance		10-1000 HZ,>3g
Max Switching Current
		80A			Ambient Temperature		-40 ℃ to 125℃
Electrical Life		50,000 ops			Weigt		Approx. 100g
Mechanical Life		1,000,000 ops				Noted :the data are initial value

S18-2Z-C4
