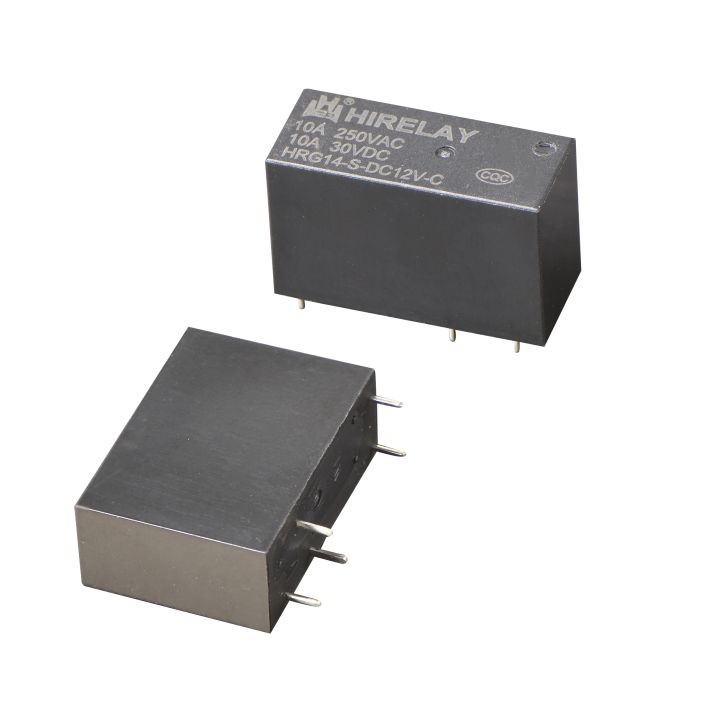

HRG14

  • Size :29×12.6×20.8(mm)
  • Max.10A switching capability
  • Creepage distance:8mm
  • Direlectric strength 5000V
  • 10A industrial relay , 1C , 5pins
    Inquiry Send Email PDF

    Description


    Odering Information
    ①  Part No.
    HRG14 S DC12V C X ②  Enclosure :Plastic sealed
    ① ② ③ ④ ⑤ ③  Coil Voltage :
    DC 5 ,6, 9,12, 24V,48V
    ④  Contact form:
    A: 1N/O   C: 1C/O
    ⑤ Special requirment
    Specification:
    Contact Characteristics
    Contact Form 1 Form C  ,1 Form A Insulation resistance Min 1000MΩ(500VDC)
    Contact Material Ag Alloy Dielectric Strength Between contact                              1000VAC 1min
    Contact Resistance 100 mΩ(6VDC 1A) Between coil &contact                     5000VAC 1min
    Contact Rating(Resistance Load) Operate time ≤ 15ms
    Resistive : 10A   250VAC/30VDC Release time ≤ 8ms
    Shock Resistance Endurance 100 m/s2
    Damage 1000 m/s2
    Max Switching Voltage 277VAC/30VDC Vibration Resistance 10-55 HZ  1.5mm DA
    Max Switching Current 10 A Humidity 35%-95% RH
    Max Switching Power 2770VA  300W Ambient Temperature -35 ℃ to 70℃
    Electrical Life 100,000 ops Weigt Approx. 13.0g
    Mechanical Life 1,000,000 ops Noted :the data are initial value
    Coil Data: at 23℃
    (540mW)
    Nominal Voltage    VDC Operate Voltage     Max VDC Release Voltage       Min VDC Max Voltage  VDC Coil Resistance Ω +/- 10%
    5 3.75  0.50  7.00  47
    6 4.50  0.60  8.50  68
    9 6.75  0.90  12.50  160
    12 9.00  1.20  16.80  275
    24 18.00  2.40  33.50  1100
    48 36.00  4.80  67.20  4170


    Dimension(mm)
