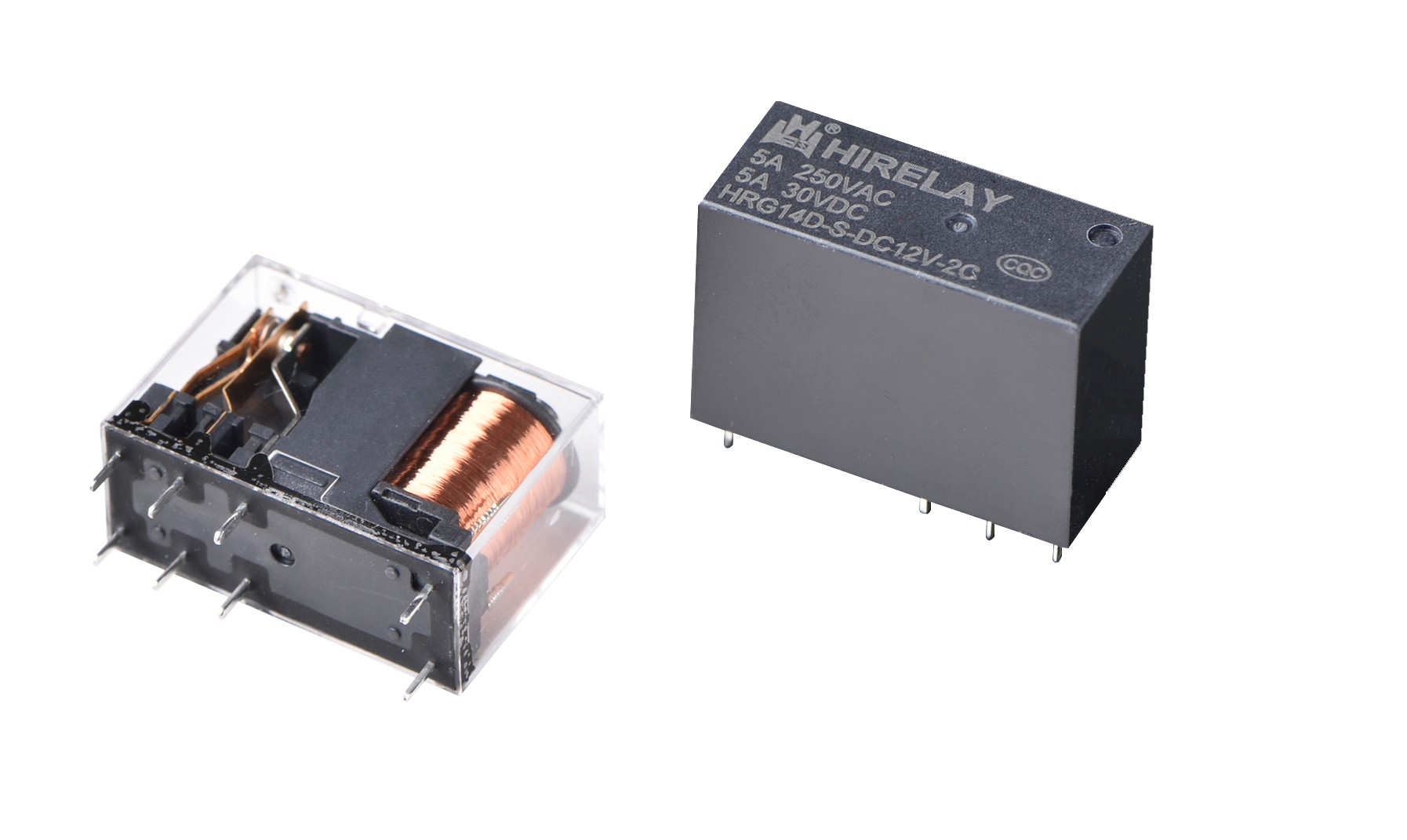

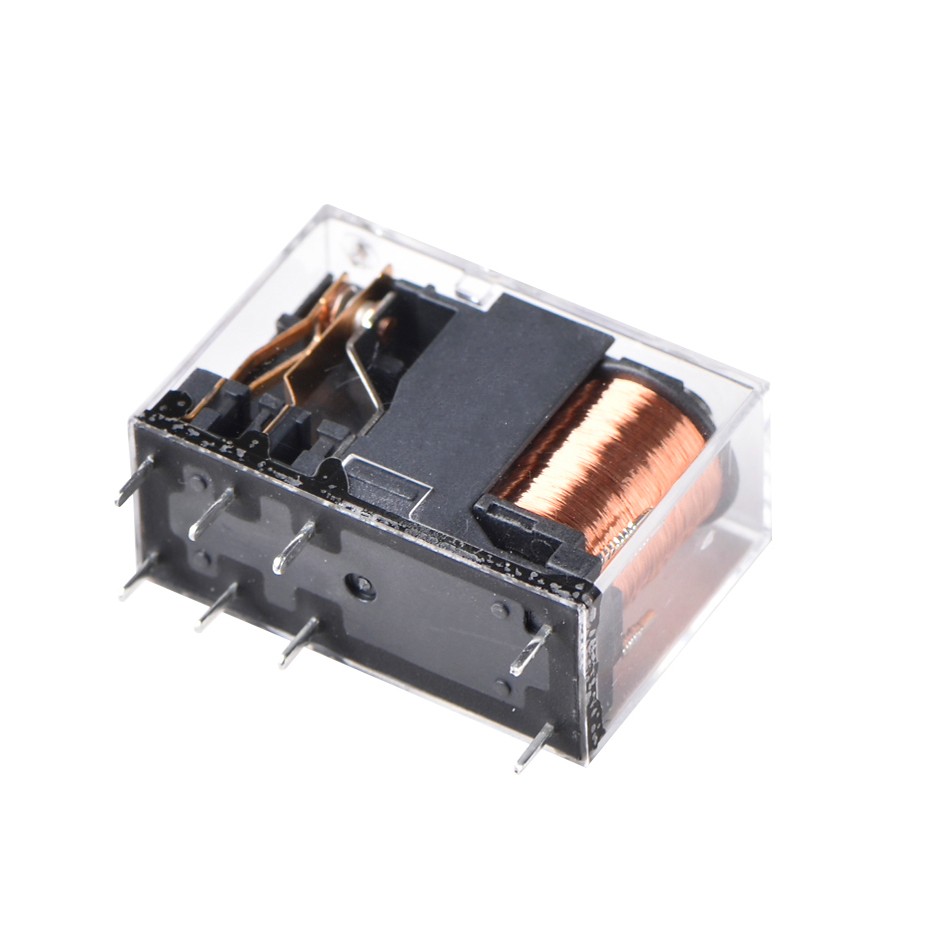

Description
| Odering Information | ||||||||
| ① Part No. | ||||||||
| HRG14D | S | DC12V | 2C | X | ② Enclosure :Plastic sealed | |||
| ① | ② | ③ | ④ | ⑤ | ③ Coil Voltage : | |||
| DC 5 ,6, 9,12, 24V,48V | ||||||||
| ④ Contact form: | ||||||||
| 2A: 2N/O 2C: 2C/O | ||||||||
| ⑤ Special requirment | ||||||||
| Specification: | ||||||||
| Contact | Characteristics | |||||||
| Contact Form | 2 Form C ,2 Form A | Insulation resistance | Min 1000MΩ(500VDC) | |||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 1000VAC 1min | |||||
| Contact Resistance | 100 mΩ(6VDC 1A) | Between coil &contact 5000VAC 1min | ||||||
| Contact Rating(Resistance Load) | Operate time | ≤ 15ms | ||||||
| Resistive : 5A 250VAC/30VDC | Release time | ≤ 8ms | ||||||
| Shock Resistance | Endurance | 100 m/s2 | ||||||
| Damage | 1000 m/s2 | |||||||
| Max Switching Voltage | 277VAC/30VDC | Vibration Resistance | 10-55 HZ 1.5mm DA | |||||
| Max Switching Current | 5 A | Humidity | 35%-95% RH | |||||
| Max Switching Power | 1250VA 150W | Ambient Temperature | -35 ℃ to 70℃ | |||||
| Electrical Life | 100,000 ops | Weigt | Approx. 13.0g | |||||
| Mechanical Life | 1,000,000 ops | Noted :the data are initial value | ||||||
| Coil Data: | at 23℃ | |||||||
| (540mW) | ||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | ||||
| 5 | 3.75 | 0.50 | 7.00 | 47 | ||||
| 6 | 4.50 | 0.60 | 8.50 | 68 | ||||
| 9 | 6.75 | 0.90 | 12.50 | 160 | ||||
| 12 | 9.00 | 1.20 | 16.80 | 275 | ||||
| 24 | 18.00 | 2.40 | 33.50 | 1100 | ||||
| 48 | 36.00 | 4.80 | 67.20 | 4170 | ||||
Dimension(mm)
