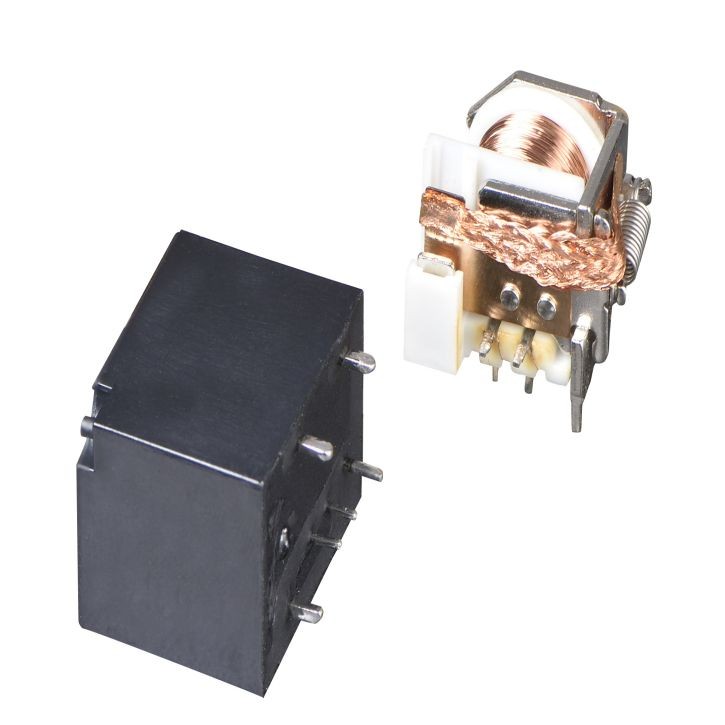

HRA3

  • Size :25.8×20.6×21.0(mm)
  • Max.40A switching capability
  • Open and sealed frame both available
  • Numerous contact arrangements
  • 40A , car relay , open type , sealed type
    Inquiry Send Email PDF

    Description

    Odering Information
    ①  Part No.
    HRA3 S DC12V C E ②  S :Plastic sealed   Nil:Open type
    ① ② ③ ④ ⑤ ③  Coil Voltage :
    DC 6, 9,12, 24V
    ④  Contact form:
    A : 1 Form A , C 1 Form C
    ⑤ Special requirment
    E:European footprint
    U:US footprint
    Specification:
    Contact Characteristics
    Contact Form                              1 Form A , 1 Form C Insulation resistance Min 100MΩ(500VDC)
    Contact Material Ag Alloy Dielectric Strength Between contact                                550VAC 1min
    Contact Resistance 100 mΩ(6VDC 1A) Between coil &contact                        550VAC 1min
    Contact Rating(Resistance Load) Operate time ≤ 5ms
    C: 30A  14VDC Release time ≤ 3ms
    A : 40A  14VDC Shock Resistance Endurance 100 m/s2
    Damage 1000 m/s2
    Max Switching Voltage 75VDC Vibration Resistance 10-55 HZ  1.5mm DA
    Max Switching Current 40A Humidity 35%-95% RH
    Max Switching Power 560W Ambient Temperature -40 ℃ to 85℃
    Electrical Life 100,000 ops Weigt Approx. 15.0g
    Mechanical Life 1,000,000 ops Noted :the data are initial value
    Coil Data: at 23℃
    (1.6 W)
    Nominal Voltage    VDC Operate Voltage     Max VDC Release Voltage       Min VDC Max Voltage  VDC Coil Resistance         Ω +/- 10%
    6 3.60  0.60  7.80  22.5
    9 5.40  0.90  11.70  51
    12 7.20  1.20  15.60  90
    24 14.40  2.40  31.20  360


    Dimension(mm)
