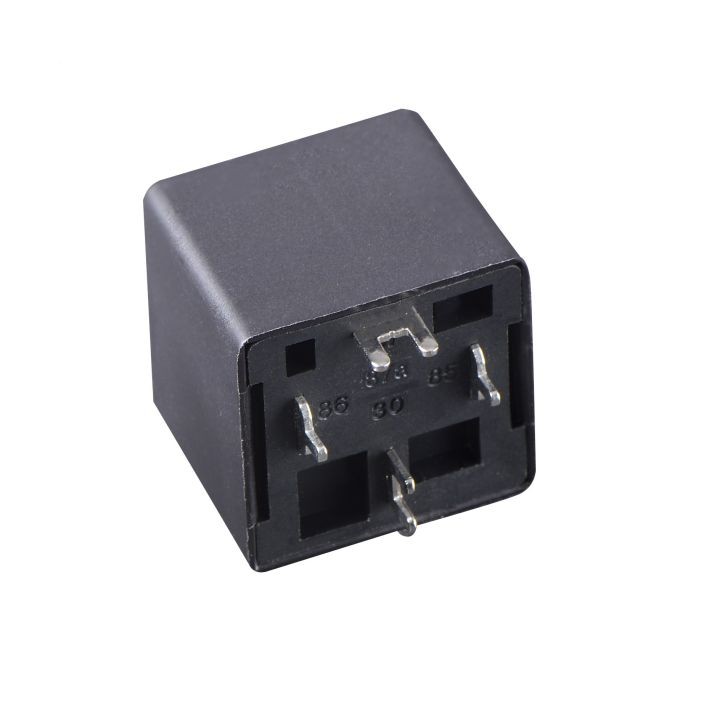

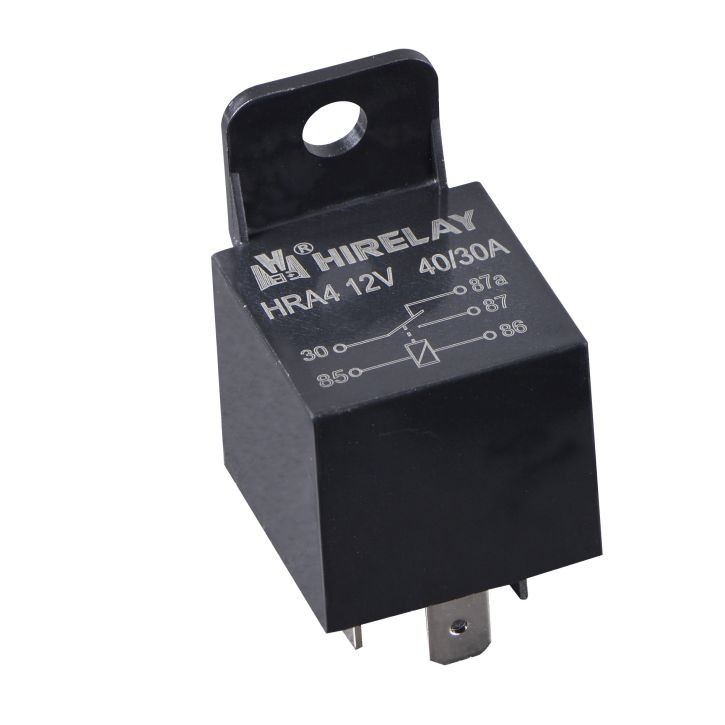

Description
| Odering Information | ||||||||
| ① Part No. | ||||||||
| HRA4 | S | DC12V | C | D | R | ② S :Plastic sealed Nil:Dust Cover | ||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ③ Coil Voltage : | ||
| DC 6, 12, 24V | ||||||||
| ④ Contact form: | ||||||||
| ⑥ Parallel coil components | A : 1 Form A , C 1 Form C | |||||||
| R: With Resistor | ⑤ Version | |||||||
| 6V-180Ω ,12V-680Ω,24V2700Ω | Nil : Without Bracket | |||||||
| D: With Diode | D : Plastic bracket | |||||||
| Nil :Standard | T : Metal bracket | |||||||
| P : PCB terminal | ||||||||
| Specification: | ||||||||
| Contact | Characteristics | |||||||
| Contact Form 1 Form A , 1 Form C | Insulation resistance | Min 100MΩ(500VDC) | ||||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 550VAC 1min | |||||
| Contact Resistance | 100 mΩ(6VDC 1A) | Between coil &contact 550VAC 1min | ||||||
| Contact Rating(Resistance Load) | Operate time | ≤ 10ms | ||||||
| NO: 40A 14VDC | Release time | ≤ 10ms | ||||||
| NC: 30A 14VDC | Shock Resistance | Endurance | 100 m/s2 | |||||
| Damage | 1000 m/s2 | |||||||
| Max Switching Voltage | 75VDC | Vibration Resistance | 10-55 HZ 1.5mm DA | |||||
| Max Switching Current | 40A | Humidity | 35%-95% RH | |||||
| Max Switching Power | 560W | Ambient Temperature | -40 ℃ to 85℃ | |||||
| Electrical Life | 100,000 ops | Weigt | Approx. 37.0g | |||||
| Mechanical Life | 1,000,000 ops | Noted :the data are initial value | ||||||
| Coil Data: | at 23℃ | |||||||
| 1.6 W/1.8 W(with resistor) | ||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | ||||
| 12 | 8.40 | 1.20 | 20.00 | 90 | ||||
| 24 | 16.80 | 2.40 | 40.00 | 350 | ||||
| 12(R) | 8.40 | 1.20 | 20.00 | 90 | ||||
| 24(R) | 16.80 | 2.40 | 40.00 | 350 | ||||
Dimension(mm)
