Description

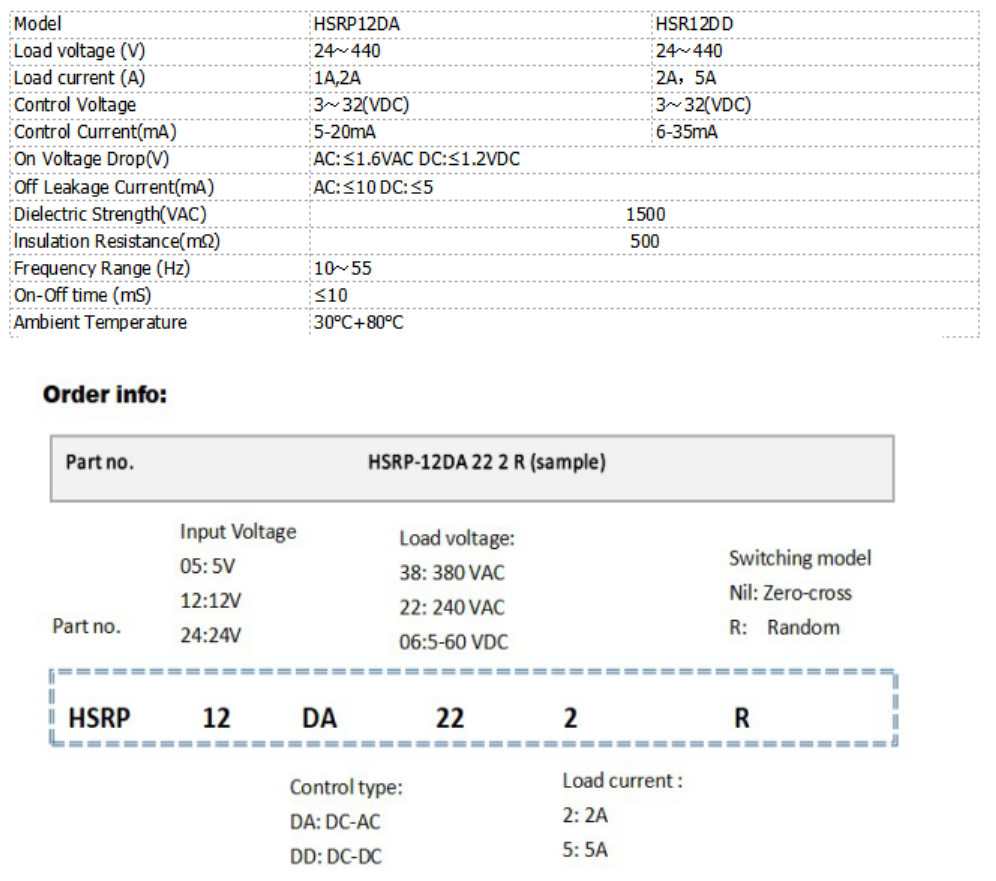

| Model | HSRP12DA | HSR12DD |
| Load voltage (V) | 24～440 | 24～440 |
| Load current (A) | 1A,2A | 2A，5A |
| Control Voltage | 3～32(VDC) | 3～32(VDC) |
| Control Current(mA) | 5-20mA | 6-35mA |
| On Voltage Drop(V) | AC:≤1.6VAC DC:≤1.2VDC | |
| Off Leakage Current(mA) | AC:≤10 DC:≤5 | |
| Dielectric Strength(VAC) | 1500 | |
| lnsulation Resistance(mΩ) | 500 | |
| Frequency Range (Hz) | 10～55 | |
| On-Off time (mS) | ≤10 | |
| Ambient Temperature | 30℃+80℃ | |
