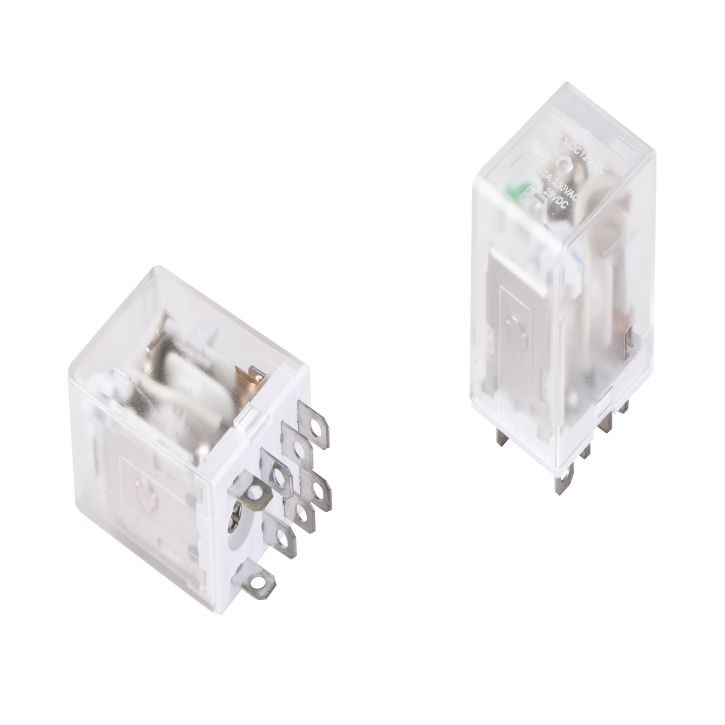

HRP13

  • Size :27.6×21.6×35.0(mm)
  • Various terminales
  • Socket available
  • 1 Form C ,2Form C
  • 10A power relay , 2C , 3C , 4C
    Inquiry Send Email PDF

    Description


    Specification:
    Contact Characteristics
    Contact Form 1 Form C ,2 Form C Insulation resistance Min 500MΩ(500VDC)
    Contact Material Ag Alloy Dielectric Strength Between contact 1000VAC 1min
    Contact Resistance 100 mΩ(6VDC 1A) Between coil &contact 1500VAC 1min
    Contact Rating(Resistance Load) Operate time ≤ 25ms
    1C: 15A 250VAC 30VDC Release time ≤ 25ms
    2C: 10A 250VAC 30VDC Shock Resistance Endurance 100 m/s2
    Damage 1000 m/s2
    Max Switching Voltage 250VAC/30VDC Vibration Resistance 10-55 HZ 1.5mm DA
    Max Switching Current 15 / 10 A Humidity 5%-85% RH
    Max Switching Power 2500VA 300W Ambient Temperature -40 ℃ to 70℃
    Electrical Life 100,000 ops Weigt Approx. 37.0g
    Mechanical Life 1,000,000 ops Noted :the data are initial value
    Coil Data: at 23℃
    DC (900~1100mW)
    Nominal Voltage VDC Operate Voltage Max VDC Release Voltage Min VDC Max Voltage VDC Coil Resistance Ω +/- 10%
    5 4.00 0.50 5.50 27
    6 4.80 0.60 6.60 40
    9 7.20 0.90 9.90 90
    12 9.60 1.20 13.20 160
    24 19.20 2.40 26.40 640
    48 38.40 4.80 52.80 2560
    110 80.00 11.00 121.00 12250
    220 176.00 22.00 242.00 53360
    AC ( 1.2 ~ 1.8 VA)
    Nominal Voltage VAC Operate Voltage Max VAC Release Voltage Min VAC Max Voltage VAC Coil Resistance Ω +/- 10%
    6 4.80 1.80 6.60 11
    12 9.60 3.60 13.20 44
    24 19.20 7.20 26.40 177
    48 38.40 14.40 14.40 708
    60 48.00 18.00 18.00 1100
    110 80.00 33.00 121.00 3400
    220 160.00 66.00 242.00 13600
    240 176.00 72.00 264.00 16300
