Description
| Odering Information | ||||||||
| ① Part No. | HRF2: High cover | |||||||
| HRF1 | DC12V | B | X | HRF1: Low cover | ||||
| ① | ② | ③ | ④ | ② Coil Voltage : | ||||
| DC 12 DC24V | ||||||||
| ③ Nil : without bracket | ||||||||
| B: with bracket | ||||||||
| ④ X : Special requirment | ||||||||
| Specification: | ||||||||
| Characteristics | ||||||||
| Operate Voltage | ||||||||
| 12V : 9VDC~16VDC | Vibration resistance | 10Hz~200Hz, 49m/s2 | ||||||
| 24V : 18VDC~32VDC | ||||||||
| Flash Frequebcy | ||||||||
| (60~110) ops/min | Shock Resistace | 196m/s2 | ||||||
| Ambient Temperature | -40 ℃ to 85℃ | |||||||
| Electrical Life | 1*105 | Weigt | Approx. 30g | |||||
Dimension(mm)

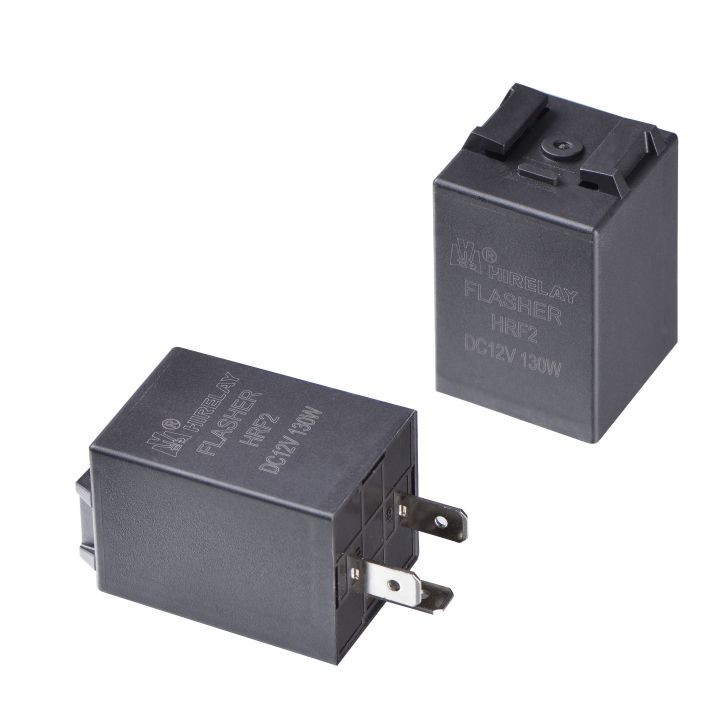

HRF2

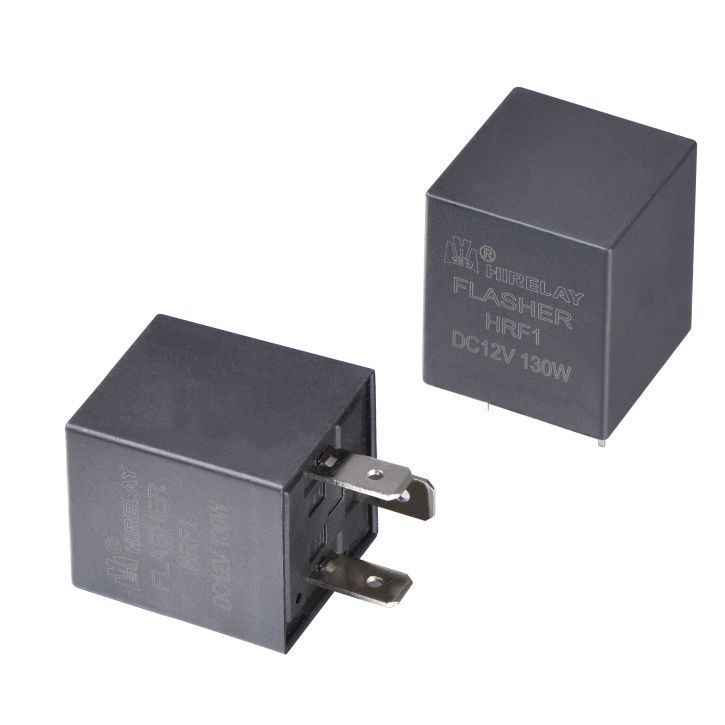

HRF1
