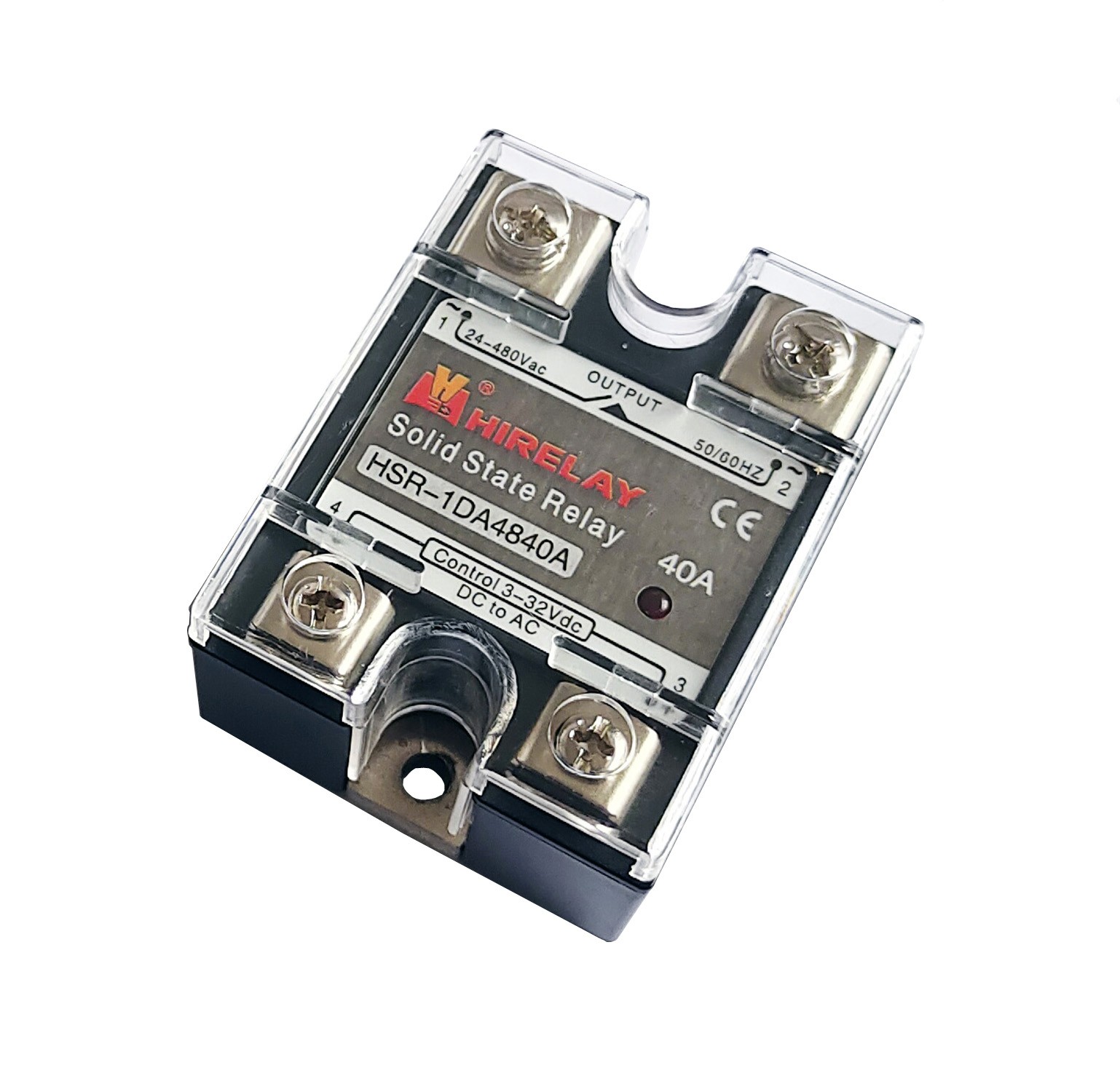

HSR-1DA4840

Size ：57.3×44.8×31.7(mm)

Dielectric Strength 2500VAC

LED Indicator

CE Approval

Odering Information
HSR	1	DA	48	10	R
①	②	③	④	⑤	⑥

① Part No.:
HSR
② Phase:
1: Single phase 3 : Three Phase
③ Control type :
DA: DC -AC AA: AC-AC DD:DC-DC
④ Load voltage:
48: 24~480V
⑤ Load current:
10:10A 25:25A 40:40A 60:60A
80:80A 100:100A 120:120A 150:150A
⑥Switching Model:
Nil: Zero-cross R:Random

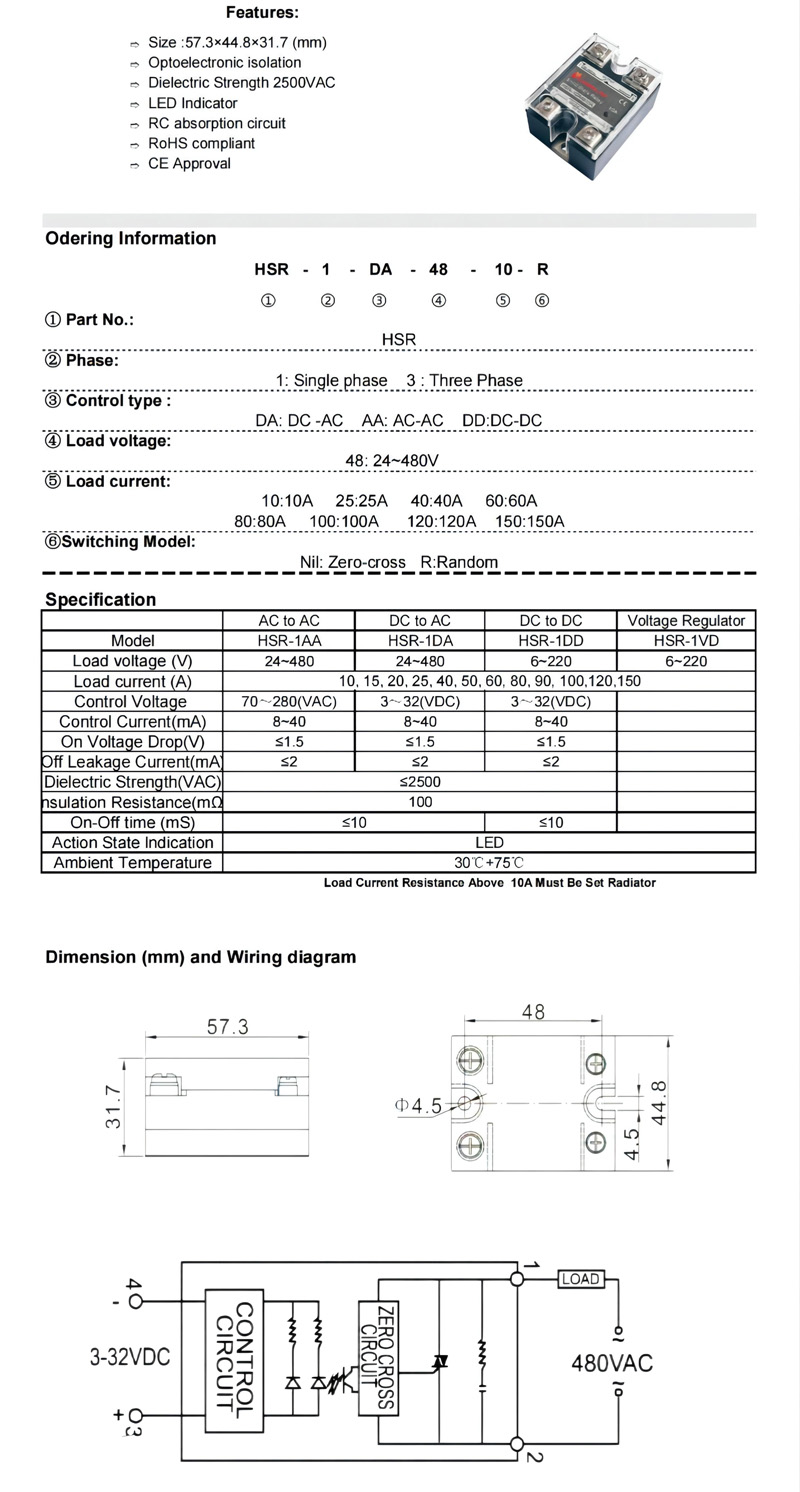

Specification
		AC to AC		DC to AC		DC to DC	Voltage Regulator
Model		HSR-1AA		HSR-1DA		HSR-1DD	HSR-1VD
Load voltage (V)		24~480		24~480		6~220	6~220
Load current (A)		10, 15, 20, 25, 40, 50, 60, 80, 90, 100,120,150
Control Voltage		70～280(VAC)		3～32(VDC)		3～32(VDC)
Control Current(mA)		8~40		8~40		8~40
On Voltage Drop(V)		≤1.5		≤1.5		≤1.5
Off Leakage Current(mA)		≤2		≤2		≤2
Dielectric Strength(VAC)		≤2500
lnsulation Resistance(mΩ)		100
On-Off time (mS)		≤10				≤10
Action State lndication		LED
Ambient Temperature		30℃+75℃
Load Current Resistance Above 10A Must Be Set Radiator

HSR3120Z
