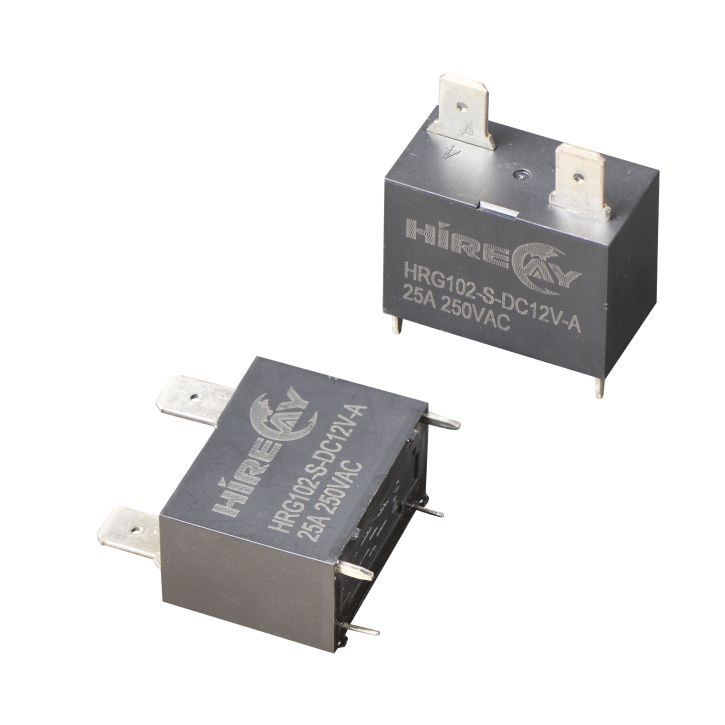

HRG102

Size ：30.4×16×23.4(mm)

Max.25A switching capability

Ideal for Motor switching

Direlectric strength 4500V

Odering Information
							① Part No.
HRG102	S	DC12V	A	X			② Enclosure :Plastic sealed
①	②	③	④	⑤			③ Coil Voltage :
							DC 5 ,12, 24V
							④ Contact form:
							A: 1N/O
							⑤ Special requirment
Specification:
Contact					Characteristics
Contact Form		1 Form A			Insulation resistance		Min 1000MΩ(500VDC)
Contact Material		Ag Alloy			Dielectric Strength	Between contact 1000VAC 1min
Contact Resistance		100 mΩ(6VDC 1A)				Between coil &contact 4500VAC 1min
Contact Rating(Resistance Load)					Operate time		≤ 20ms
Resistive : 20A 250VAC					Release time		≤ 10ms
Motor: 2HP 240VAC					Shock Resistance	Endurance	100 m/s2
						Damage	1000 m/s2
Max Switching Voltage		277VAC/30VDC			Vibration Resistance		10-55 HZ 1.5mm DA
Max Switching Current		Resistance:25A			Humidity		35%-95% RH
Max Switching Power		5000VA 600W			Ambient Temperature		-25 ℃ to 85℃
Electrical Life		100,000 ops			Weigt		Approx. 22.0g
Mechanical Life		20,000,000 ops			Noted :the data are initial value
Coil Data:					at 23℃
(900mW)
Nominal Voltage VDC		Operate Voltage Max VDC		Release Voltage Min VDC			Max Voltage VDC	Coil Resistance Ω +/- 10%

5		3.50		0.50			6.00	27.8
12		8.40		1.20			14.50	160
24		16.80		2.40			28.80	640
