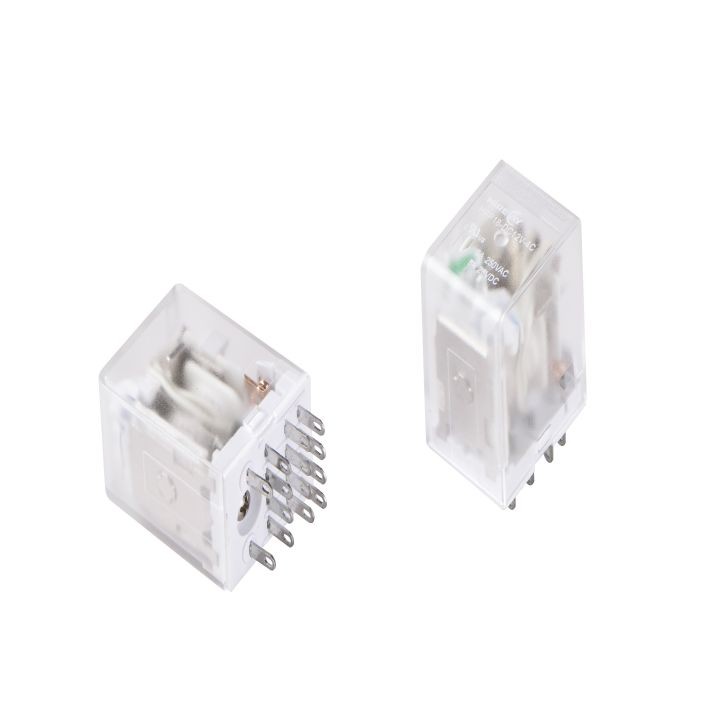

Description
| Specification: | ||||||||
| Contact | Characteristics | |||||||
| Contact Form 2 Form C, 4 Form C | Insulation resistance | Min 1000MΩ(500VDC) | ||||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 1000VAC 1min | |||||
| Contact Resistance | 100 mΩ(6VDC 1A) | Between coil &contact 1500VAC 1min | ||||||
| Contact Rating(Resistance Load) | Operate time | ≤ 25ms | ||||||
| 2C: 7A 220VAC 30VDC | Release time | ≤ 25ms | ||||||
| 4C: 5A 220VAC 30VDC | Shock Resistance | Endurance | 100 m/s2 | |||||
| Damage | 1000 m/s2 | |||||||
| Max Switching Voltage | 250VAC/30VDC | Vibration Resistance | 10-55 HZ 1.5mm DA | |||||
| Max Switching Current | 7 / 5 A | Humidity | 5%-85% RH | |||||
| Max Switching Power | 1500VA 190W | Ambient Temperature | -40 ℃ to 70℃ | |||||
| Electrical Life | 100,000 ops | Weigt | Approx. 37.0g | |||||
| Mechanical Life | 1,000,000 ops | Noted :the data are initial value | ||||||
| Coil Data: | at 23℃ | |||||||
| DC (900~1100mW) | ||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | ||||
| 5 | 4.00 | 0.50 | 5.50 | 27 | ||||
| 6 | 4.80 | 0.60 | 6.60 | 40 | ||||
| 9 | 7.20 | 0.90 | 9.90 | 90 | ||||
| 12 | 9.60 | 1.20 | 13.20 | 160 | ||||
| 24 | 19.20 | 2.40 | 26.40 | 640 | ||||
| 48 | 38.40 | 4.80 | 52.80 | 2560 | ||||
| 110 | 80.00 | 11.00 | 121.00 | 12250 | ||||
| 220 | 176.00 | 22.00 | 242.00 | 53360 | ||||
| AC ( 0.9 ~ 1.5 VA) | ||||||||
| Nominal Voltage VAC | Operate Voltage Max VAC | Release Voltage Min VAC | Max Voltage VAC | Coil Resistance Ω +/- 10% | ||||
| 6 | 4.80 | 1.80 | 6.60 | 11 | ||||
| 12 | 9.60 | 3.60 | 13.20 | 44 | ||||
| 24 | 19.20 | 7.20 | 26.40 | 177 | ||||
| 48 | 38.40 | 14.40 | 14.40 | 708 | ||||
| 60 | 48.00 | 18.00 | 18.00 | 1100 | ||||
| 110 | 80.00 | 33.00 | 121.00 | 3400 | ||||
| 220 | 160.00 | 66.00 | 242.00 | 13600 | ||||
| 240 | 176.00 | 72.00 | 264.00 | 16300 | ||||
