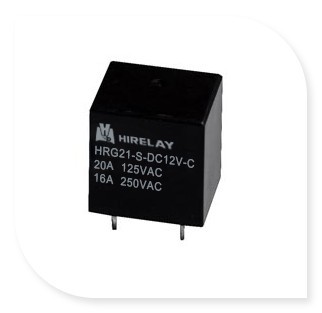

HRG21

  • Size :20.2×16.5×20.2(mm)
  • 15A , 1C , 21F
    Inquiry Send Email PDF

    Description

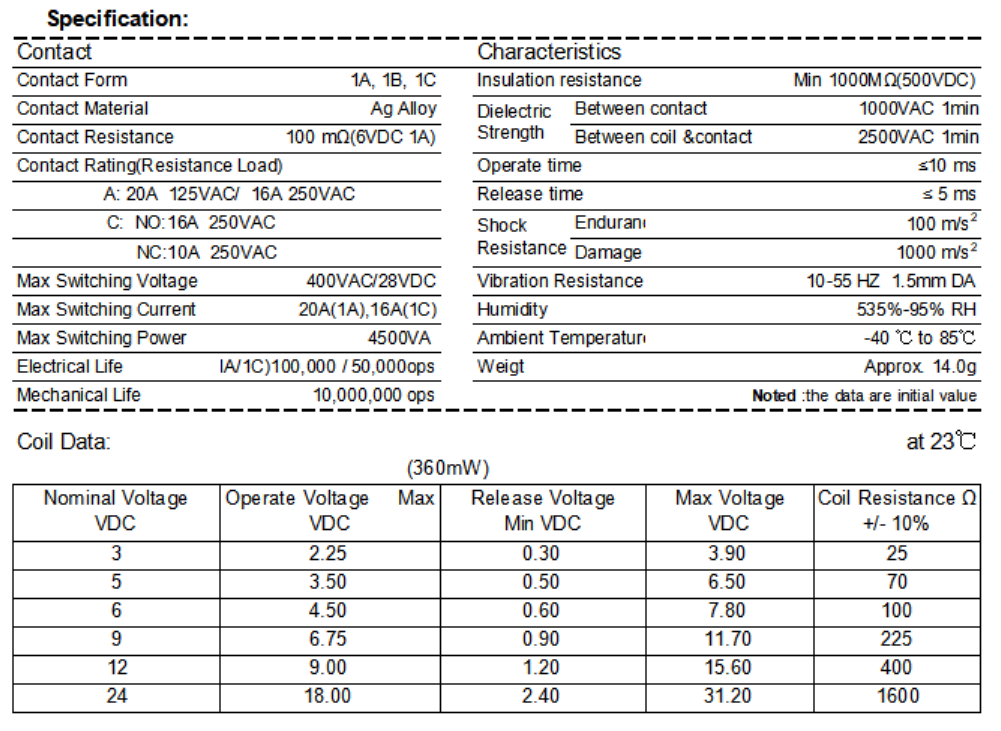

    Specification:
    Contact Characteristics
    Contact Form 1A, 1B, 1C Insulation resistance Min 1000MΩ(500VDC)
    Contact Material Ag Alloy Dielectric Strength Between contact 1000VAC 1min
    Contact Resistance 100 mΩ(6VDC 1A) Between coil &contact 2500VAC 1min
    Contact Rating(Resistance Load) Operate time ≤10 ms
    A: 20A 125VAC/ 16A 250VAC Release time ≤ 5 ms
    C: NO:16A 250VAC Shock Resistance Endurance 100 m/s2
    NC:10A 250VAC Damage 1000 m/s2
    Max Switching Voltage 400VAC/30VDC Vibration Resistance 10-55 HZ 1.5mm DA
    Max Switching Current 20A(1A),17A(1C) Humidity 535%-95% RH
    Max Switching Power 1800VA 240W Ambient Temperature -40 ℃ to 85℃
    Electrical Life 100,000 ops Weigt Approx. 14.0g
    Mechanical Life 5,000,000 ops Noted :the data are initial value
    Coil Data: at 23℃
                     (360mW)
    Nominal Voltage VDC Operate Voltage Max VDC Release Voltage Min VDC Max Voltage VDC Coil Resistance Ω +/- 10%
    3 2.25 0.30 3.90 25
    5 3.50 0.50 6.50 70
    6 4.50 0.60 7.80 100
    9 6.75 0.90 11.70 225
    12 9.00 1.20 15.60 400
    24 18.00 2.40 31.20 1600
