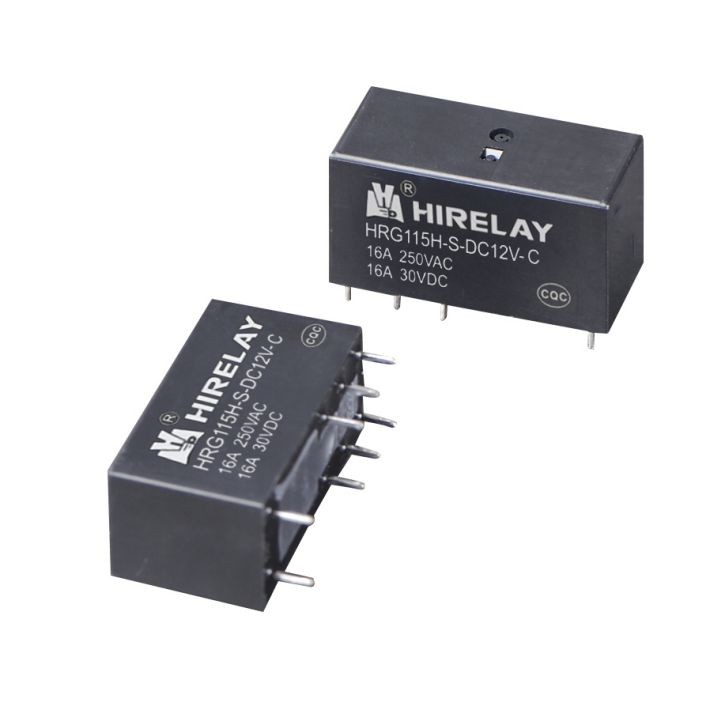

HRG115H

Size ：29.0×12.6×15.8(mm)

Max.16A switching capability

High sensitive:400mW

Lower height 15.8 mm

Odering Information
							① Part No.
HRG115H	S	DC12V	C	X			② Enclosure :Plastic sealed
①	②	③	④	⑤			③ Coil Voltage :
							DC 5 ,6, 9,12, 24V,48V
							④ Contact form:
							1A: 1N/O 1C: 1C/O
							⑤ Special requirment
Specification:
Contact					Characteristics
Contact Form		1 Form C , 1 Form A			Insulation resistance		Min 1000MΩ(500VDC)
Contact Material		Ag Alloy			Dielectric Strength	Between contact 1000VAC 1min
Contact Resistance		100 mΩ(6VDC 1A)				Between coil &contact 5000VAC 1min
Contact Rating(Resistance Load)					Operate time		≤ 10ms
Resistive : 16A 250VAC/30VDC					Release time		≤ 5ms
					Shock Resistance	Endurance	100 m/s2
						Damage	1000 m/s2
Max Switching Voltage		440VAC/120VDC			Vibration Resistance		10-55 HZ 1.5mm DA
Max Switching Current		16 A			Humidity		35%-95% RH
Max Switching Power		3000VA 360W			Ambient Temperature		-40 ℃ to 85℃
Electrical Life		100,000 ops			Weigt		Approx. 13.0g
Mechanical Life		1,000,000 ops			Noted :the data are initial value
Coil Data:					at 23℃
(400mW)
Nominal Voltage VDC		Operate Voltage Max VDC		Release Voltage Min VDC			Max Voltage VDC	Coil Resistance Ω +/- 10%

5		3.50		0.50			7.50	62
6		4.20		0.60			9.00	90
9		6.30		0.90			13.50	202
12		8.40		1.20			18.00	360
24		16.80		2.40			36.00	1440
48		33.60		4.80			72.00	5760

Dimension(mm)
