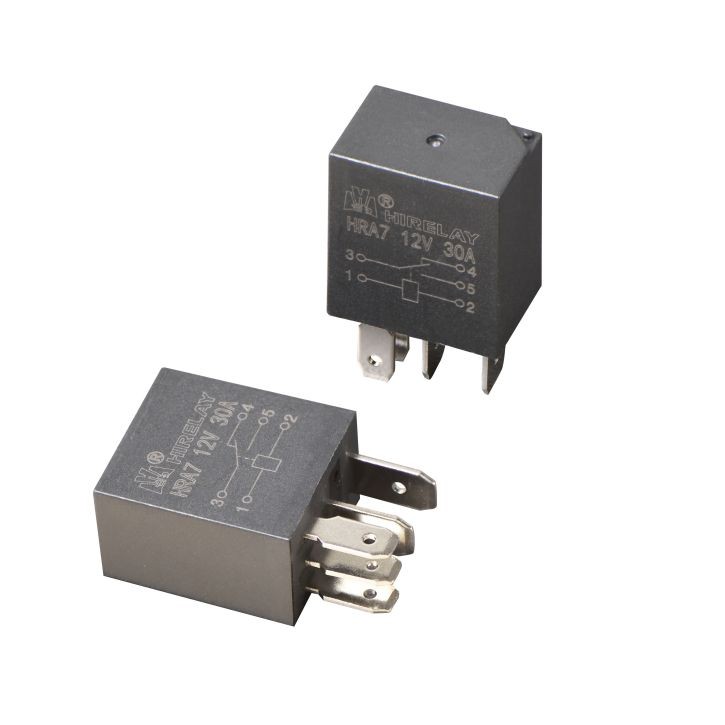

Description

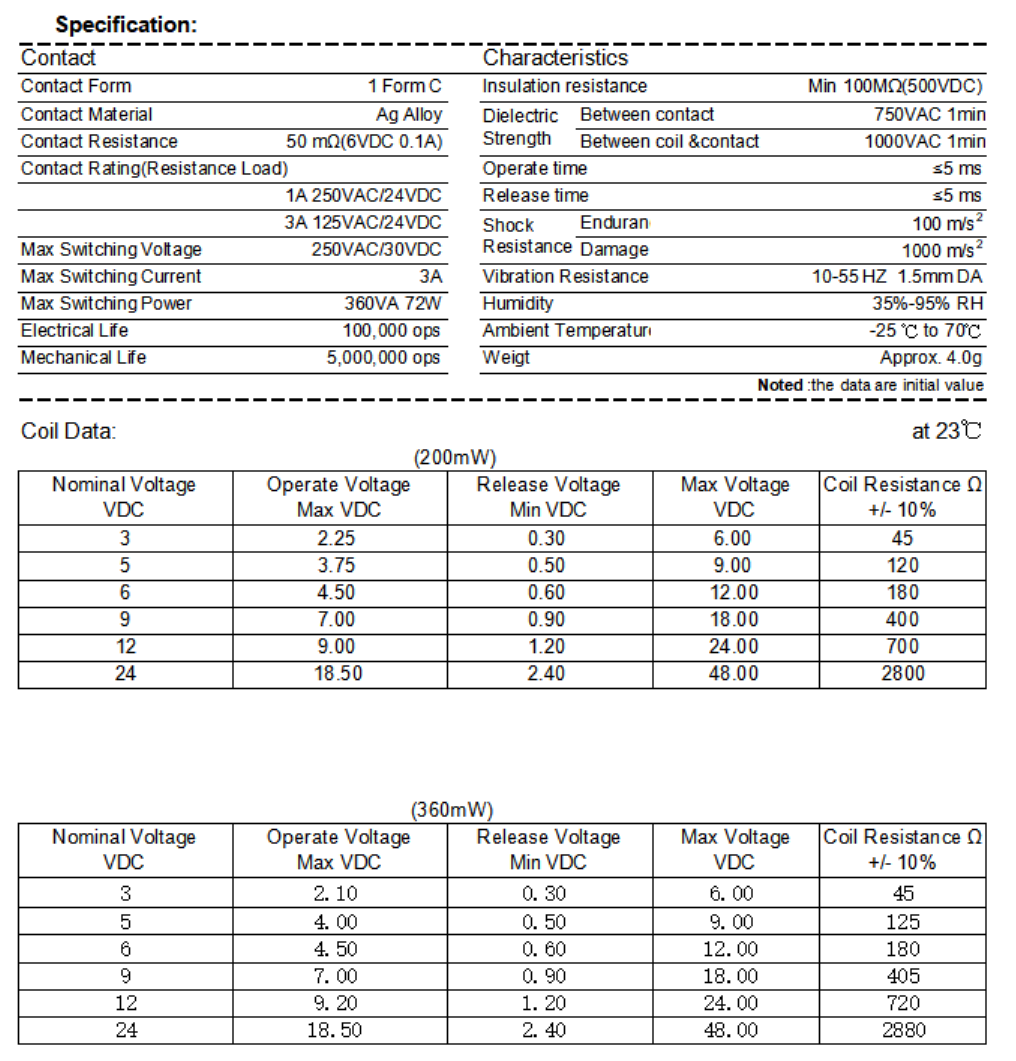

| Specification: | |||||||||
| Contact | Characteristics | ||||||||
| Contact Form | 1 Form C | Insulation resistance | Min 100MΩ(500VDC) | ||||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 750VAC 1min | ||||||
| Contact Resistance | 50 mΩ(6VDC 0.1A) | Between coil &contact 1000VAC 1min | |||||||
| Contact Rating(Resistance Load) | Operate time | ≤5 ms | |||||||
| 1A 250VAC/24VDC | Release time | ≤5 ms | |||||||
| 3A 125VAC/24VDC | Shock Resistance | Endurance | 100 m/s2 | ||||||
| Max Switching Voltage | 250VAC/30VDC | Damage | 1000 m/s2 | ||||||
| Max Switching Current | 3A | Vibration Resistance | 10-55 HZ 1.5mm DA | ||||||
| Max Switching Power | 360VA 72W | Humidity | 35%-95% RH | ||||||
| Electrical Life | 100,000 ops | Ambient Temperature | -25 ℃ to 70℃ | ||||||
| Mechanical Life | 5,000,000 ops | Weigt | Approx. 4.0g | ||||||
| Noted :the data are initial value | |||||||||
| Coil Data: | at 23℃ | ||||||||
| (200mW) | |||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | |||||
| 3 | 2.25 | 0.30 | 6.00 | 45 | |||||
| 5 | 3.75 | 0.50 | 9.00 | 120 | |||||
| 6 | 4.50 | 0.60 | 12.00 | 180 | |||||
| 9 | 7.00 | 0.90 | 18.00 | 400 | |||||
| 12 | 9.00 | 1.20 | 24.00 | 700 | |||||
| 24 | 18.50 | 2.40 | 48.00 | 2800 | |||||
| (360mW) | |||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | |||||
| 3 | 2.10 | 0.30 | 6.00 | 45 | |||||
| 5 | 4.00 | 0.50 | 9.00 | 125 | |||||
| 6 | 4.50 | 0.60 | 12.00 | 180 | |||||
| 9 | 7.00 | 0.90 | 18.00 | 405 | |||||
| 12 | 9.20 | 1.20 | 24.00 | 720 | |||||
| 24 | 18.50 | 2.40 | 48.00 | 2880 | |||||
