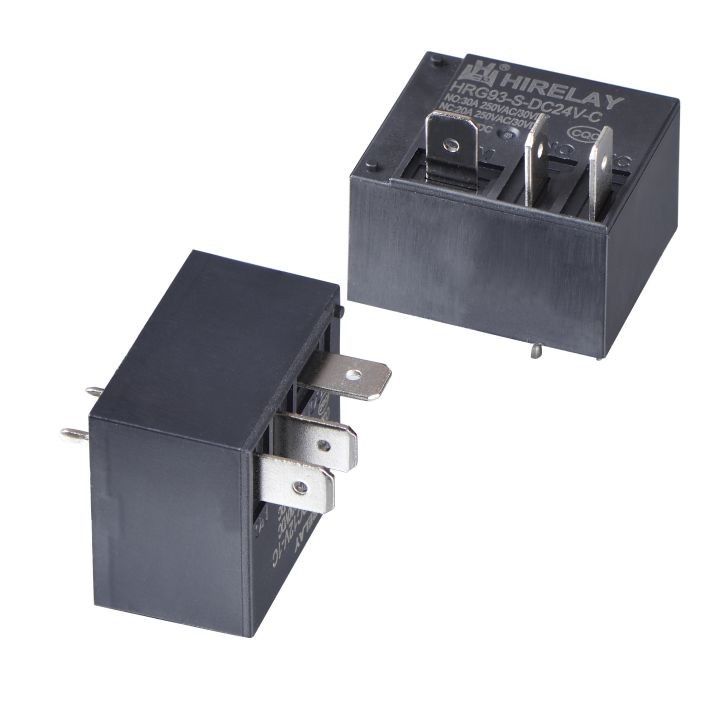

Description
| Odering Information | ||||||||
| ① Part No. | ||||||||
| HRG93 | S | DC12V | C | H | X | ② Enclosure :Plastic sealed | ||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ③ Coil Voltage : | ||
| DC 5 ,6, 9,12, 24V,48V | ||||||||
| ④ Contact form: | ||||||||
| A: 1N/O C: 1C/O B : 1N/C | ||||||||
| ⑤ Special requirment | ||||||||
| H : NO:40A NC :30A | ||||||||
| Nil: NO:30A NC: 20A | ||||||||
| ⑥ Special requirment | ||||||||
| Specification: | ||||||||
| Contact | Characteristics | |||||||
| Contact Form 1 Form A , 1 Form B , 1 Form C | Insulation resistance | Min 1000MΩ(500VDC) | ||||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 1500VAC 1min | |||||
| Contact Resistance | 100 mΩ(6VDC 1A) | Between coil &contact 2500VAC 1min | ||||||
| Contact Rating(Resistance Load) | Operate time | ≤ 15ms | ||||||
| C: NO:30A NC : 20A 250VAC 30VDC | Release time | ≤ 10ms | ||||||
| CH: NO:40A NC :30A 250VAC 30VDC | Shock Resistance | Endurance | 100 m/s2 | |||||
| Damage | 1000 m/s2 | |||||||
| Max Switching Voltage | 277VAC/35VDC | Vibration Resistance | 10-55 HZ 1.5mm DA | |||||
| Max Switching Current | 40 / 30 A | Humidity | 35%-95% RH | |||||
| Max Switching Power | 7500VA 560W | Ambient Temperature | -40 ℃ to 85℃ | |||||
| Electrical Life | 100,000 ops | Weigt | Approx. 29.0g | |||||
| Mechanical Life | 1,000,000 ops | Noted :the data are initial value | ||||||
| Coil Data: | at 23℃ | |||||||
| (900mW) | ||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | ||||
| 5 | 3.50 | 0.50 | 6.50 | 27 | ||||
| 6 | 4.20 | 0.60 | 7.80 | 40 | ||||
| 9 | 6.30 | 0.90 | 11.70 | 97 | ||||
| 12 | 8.40 | 1.20 | 15.60 | 160 | ||||
| 24 | 16.80 | 2.40 | 31.20 | 660 | ||||
| 48 | 33.60 | 4.80 | 62.40 | 2560 | ||||
Dimension(mm)
