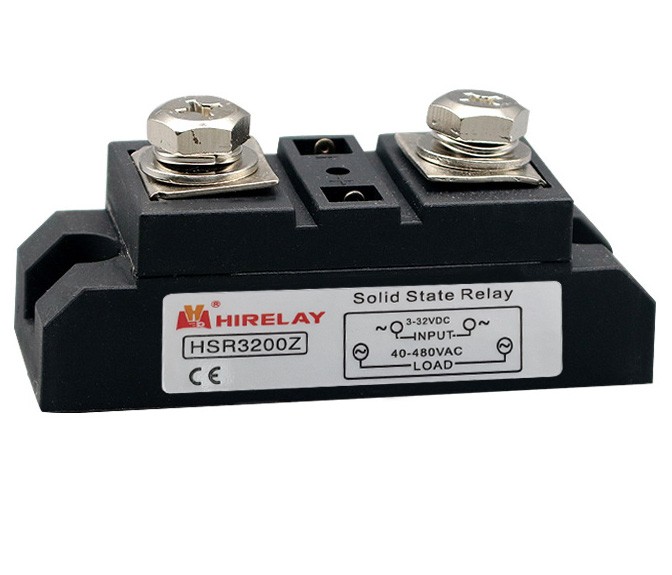

HSR3200Z

  • Size :93.7×24.8×37.5 / 94×34×42.2(mm)
  • Dielectric Strength 2500VAC
  • LED Indicator
  • CE Approval
  • 200A , SSR
    Inquiry Send Email PDF

    Description

    Odering Information
    HSR3 120 Z
    ① ② ③
    ① Part No.:
    HSR3
    ② Load current:
    60:60A     80:80A    100:100A     120:120A
    150:150A     200:200A     250: 250A    300:300A    400:400A
    ③ Switching Model:
    Z: Zero-cross
    Specification
    DC to AC
    Model HSR3
    Load voltage (V) 40~480
    Load current (A) 60  80  100  120  150  200  250  300  400
    Control Voltage 3~32(VDC)
    Control Current(mA) 8-40
    On Voltage Drop(V) ≤2
    Off Leakage Current(mA) ≤4
    Dielectric Strength(VAC) ≤2500
    lnsulation Resistance(mΩ) 1000(500VDC)
    On-Off time (mS) 10
    Action State lndication LED
    Ambient Temperature 30℃+75℃

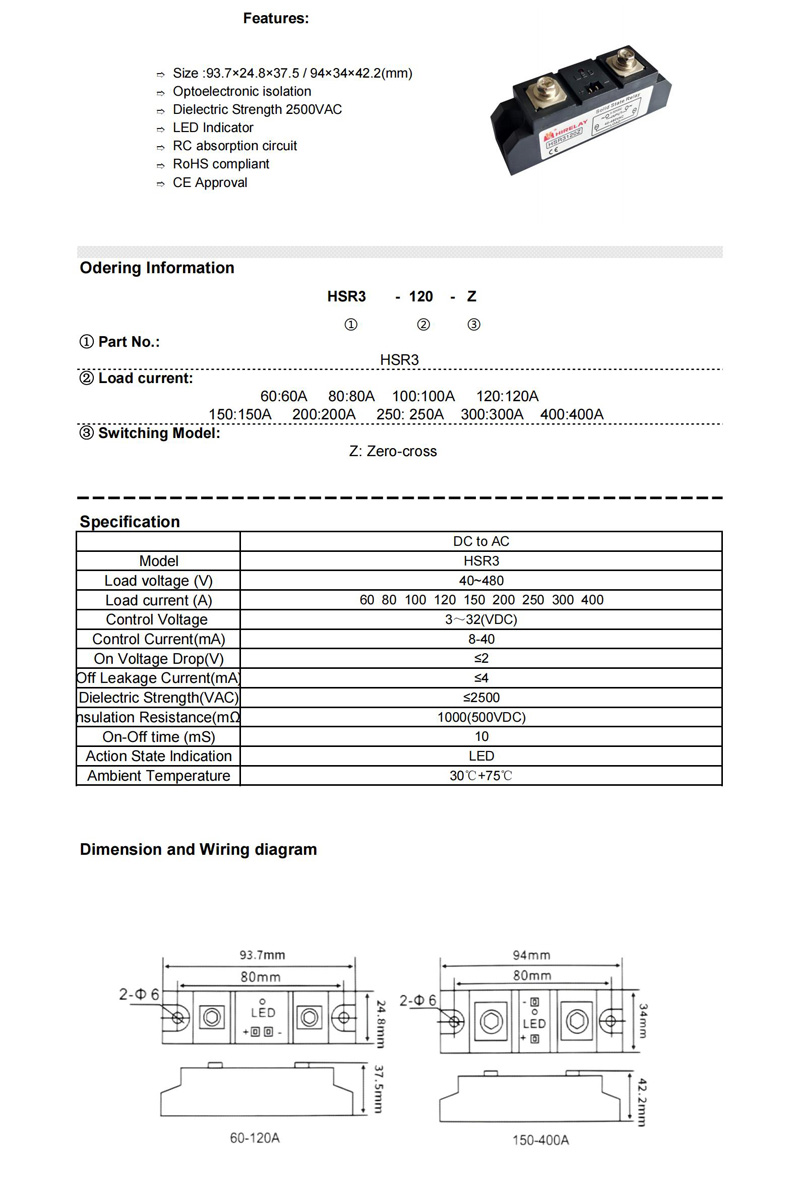

    Dimension and Wiring diagram
