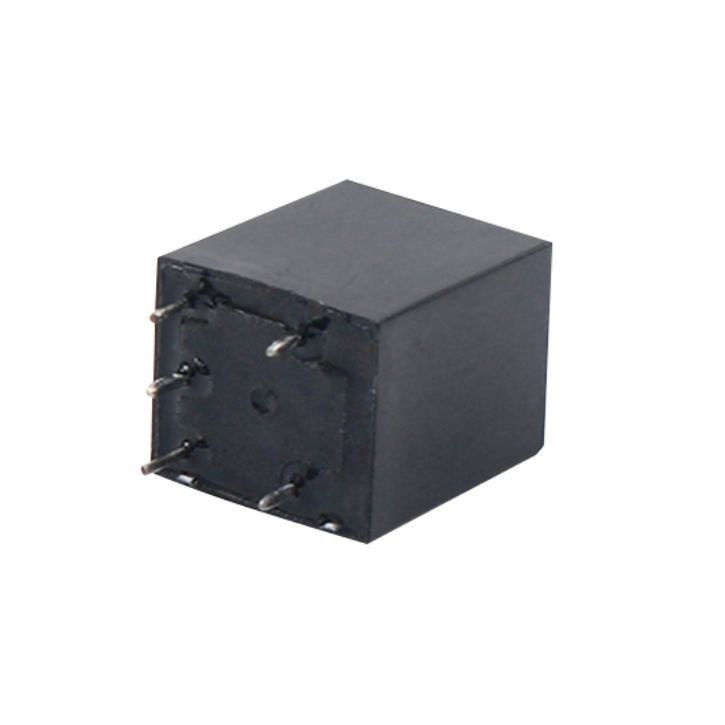

Description
| Odering Information | ||||||||
| ① Part No. | ||||||||
| HRA2 | S | DC12V | C | X | ② S :Plastic sealed Nil:Open type | |||
| ① | ② | ③ | ④ | ⑤ | ③ Coil Voltage : | |||
| DC 5 ,6, 9,12, 24V | ||||||||
| ④ Contact form: | ||||||||
| A : 1 Form A , C 1 Form C | ||||||||
| U V W | ||||||||
| ⑤ Special requirment | ||||||||
| Specification: | ||||||||
| Contact | Characteristics | |||||||
| Contact Form A, C,U,V ,W | Insulation resistance | Min 100MΩ(500VDC) | ||||||
| Contact Material | Ag Alloy | Dielectric Strength | Between contact 550VAC 1min | |||||
| Contact Resistance | 100 mΩ(6VDC 1A) | Between coil &contact 1000VAC 1min | ||||||
| Contact Rating(Resistance Load) | Operate time | ≤ 5ms | ||||||
| A /C: 15A 14VDC | Release time | ≤ 3ms | ||||||
| U/V/W : 2 ×10 A 14VDC | Shock Resistance | Endurance | 100 m/s2 | |||||
| Damage | 1000 m/s2 | |||||||
| Max Switching Voltage | 75VDC | Vibration Resistance | 10-55 HZ 1.5mm DA | |||||
| Max Switching Current | 20A | Humidity | 35%-95% RH | |||||
| Max Switching Power | 280W | Ambient Temperature | -40 ℃ to 85℃ | |||||
| Electrical Life | 100,000 ops | Weigt | Approx. 12.0g | |||||
| Mechanical Life | 1,000,000 ops | Noted :the data are initial value | ||||||
| Coil Data: | at 23℃ | |||||||
| (1.1 W) | ||||||||
| Nominal Voltage VDC | Operate Voltage Max VDC | Release Voltage Min VDC | Max Voltage VDC | Coil Resistance Ω +/- 10% | ||||
| 5 | 3.50 | 0.50 | 6.50 | 23 | ||||
| 6 | 4.20 | 0.60 | 7.80 | 33 | ||||
| 9 | 6.30 | 0.90 | 11.70 | 74 | ||||
| 12 | 8.40 | 1.20 | 15.60 | 131 | ||||
| 24 | 16.80 | 2.40 | 31.20 | 524 | ||||
Dimension(mm)
